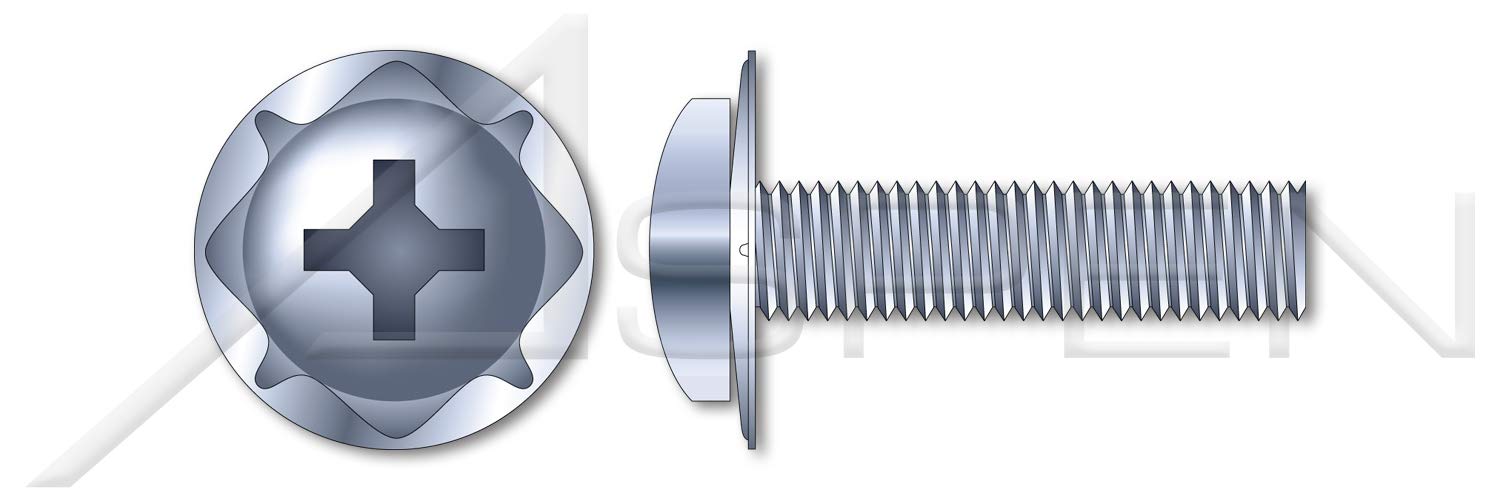

Name: (4000 pcs) #8-32 X 1, SEMS Square Cone Washer Machine Screws, Pan Phillips Drive, Steel, Zinc Plated and Baked
Brand: ASPEN FASTENERS
SKU: OT260824V9NXHUUO
Price: 321.46 USD
Availability: InStock

(4000 pcs) #8-32 X 1, SEMS Square Cone Washer Machine Screws, Pan Phillips Drive, Steel, Zinc Plated and Baked

$321.46 $896.74

Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut. SEMS screws come pre-assembled with permanently installed free-spinning lock washer.DIMENSIONAL ATTRIBUTES Diameter (Nominal): #8 Thread Pitch: 32 Diameter (Dimension): 0.164' Length (Nominal): 1' Thread Length (Nominal): 1.000' Outside Diameter (Minimum): 0.370' Outside Diameter (Maximum): 0.383' Thickness (Nominal): 0.035' Drive Recess Size: #2 Drive Recess Width: 0.175' Drive Recess Depth (Minimum): 0.071' Drive Recess Depth (Maximum): 0.097' Head Diameter (Minimum): 0.306' Head Diameter (Maximum): 0.322' Head Height, Overall (Minimum): 0.105' Head Height, Overall (Maximum): 0.115' Head Radius: 0.015'PRODUCT ATTRIBUTES Category: Machine Screws System of Measurement: Inch Brand: Aspen Fasteners Form and Design: SEMS Screws Pre-Assembled with a Captive Lock Washer Head Style: Pan Head Head Style Detail: Free-Spinning Square Cone Lock Washer Drive Style: Cruciform Recess Drive Drive Detail: Phillips Type H Thread Length: Full Thread Thread Direction: Right-Hand Thread Material: Steel Coating: Zinc Plated and Baked Coating Color: Clear Origin: Origin Undefined Standards and Specifications: ASME B18.13a and SAE J82

Features & Specs
