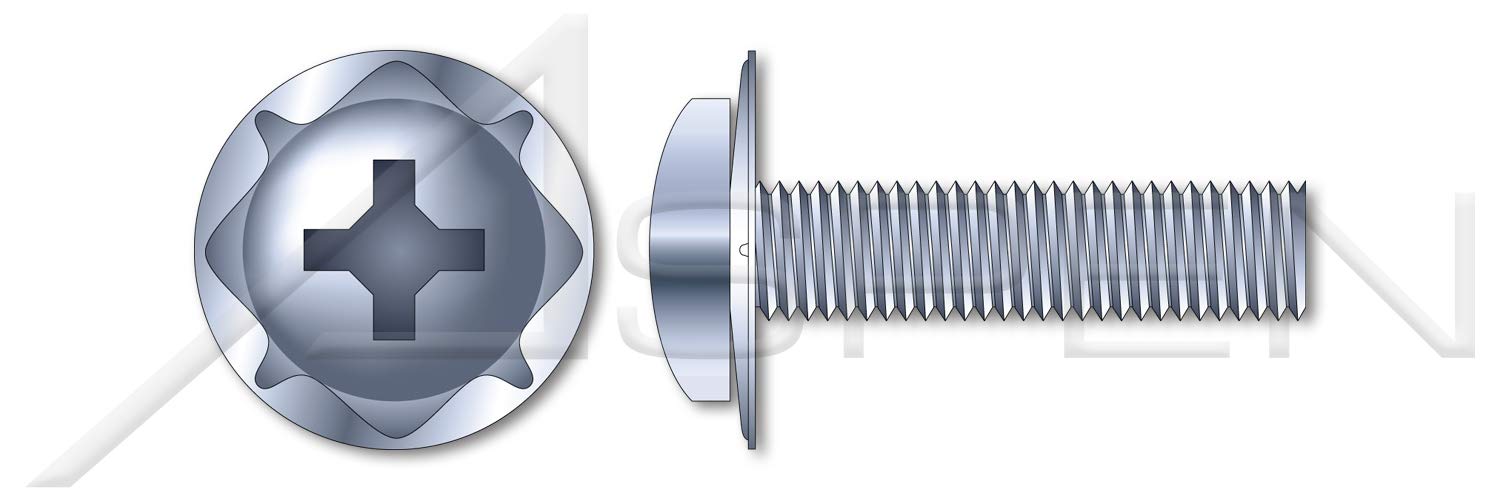

(8000 pcs) #8-32 X 5/8', SEMS Square Cone Washer Machine Screws, Pan Phillips Drive, Steel, Zinc Plated and Baked

Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut. SEMS screws come pre-assembled with permanently installed free-spinning lock washer.DIMENSIONAL ATTRIBUTES Diameter (Nominal): #8 Thread Pitch: 32 Diameter (Dimension): 0.164' Length (Nominal): 5/8' Thread Length (Nominal): 0.625' Outside Diameter (Minimum): 0.370' Outside Diameter (Maximum): 0.383' Thickness (Nominal): 0.035' Drive Recess Size: #2 Drive Recess Width: 0.175' Drive Recess Depth (Minimum): 0.071' Drive Recess Depth (Maximum): 0.097' Head Diameter (Minimum): 0.306' Head Diameter (Maximum): 0.322' Head Height, Overall (Minimum): 0.105' Head Height, Overall (Maximum): 0.115' Head Radius: 0.015'PRODUCT ATTRIBUTES Category: Machine Screws System of Measurement: Inch Brand: Aspen Fasteners Form and Design: SEMS Screws Pre-Assembled with a Captive Lock Washer Head Style: Pan Head Head Style Detail: Free-Spinning Square Cone Lock Washer Drive Style: Cruciform Recess Drive Drive Detail: Phillips Type H Thread Length: Full Thread Thread Direction: Right-Hand Thread Material: Steel Coating: Zinc Plated and Baked Coating Color: Clear Origin: Origin Undefined Standards and Specifications: ASME B18.13a and SAE J82

Features & Specs

• Drive System : Phillips
• Head Type : Pan
• Screw Head Style : Pan
• Thread Size : #8-32
• Thread Style : Right Hand

Item details

• ASIN : B07ZBP975F
• Brand : ASPEN FASTENERS
• Item Weight : 40.66 Pounds
• Manufacturer : Aspen Fasteners
• Model : SC214-832X58-008000
• Number Of Items : 1
• Part Number : SC214-832X58-008000
• UPC : 692559732626
• Unit Count : 8000.0 Count

Materials & Care

• Exterior Finish : Zinc
• Material Type : Steel
• Metal Type : Alloy Steel

Measurements

• Fastener Size : No. 8
• Item Dimensions : 0.63 x 0.16 x 0.63 inches
• Item Weight : 40.66 Pounds
• Size Name : #8-32 X 5/8'
• Thread Coverage : Fully Threaded
• Thread Size : #8-32
