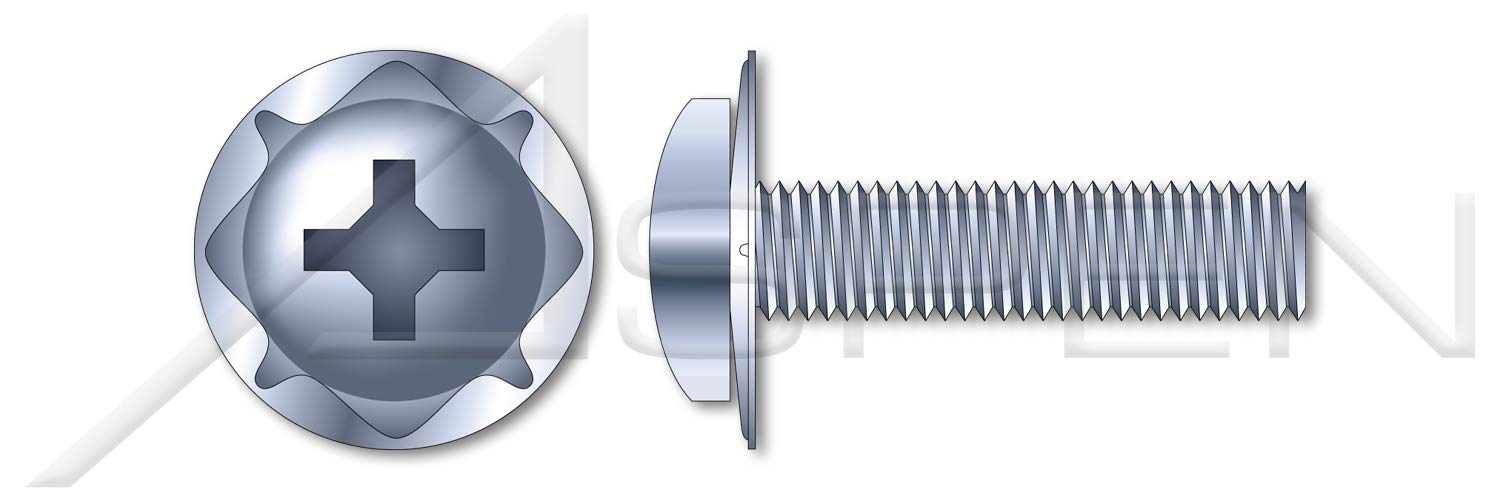

(2000 pcs) 1/4'-20 X 1, SEMS Square Cone Washer Machine Screws, Pan Phillips Drive, Steel, Zinc Plated and Baked

DIMENSIONAL ATTRIBUTES | Diameter (Nominal): 1/4' | Thread Pitch: 20 | Diameter (Dimension): 0.250' | Length (Nominal): 1' | Thread Length (Nominal): 1.000' | Outside Diameter (Minimum): 0.495' | Outside Diameter (Maximum): 0.515' | Thickness (Nominal): 0.045' | Drive Recess Size: #3 | Drive Recess Width: 0.274' | Drive Recess Depth (Minimum): 0.118' | Drive Recess Depth (Maximum): 0.144' | Head Diameter (Minimum): 0.473' | Head Diameter (Maximum): 0.492' | Head Height, Overall (Minimum): 0.162' | Head Height, Overall (Maximum): 0.175' | Head Radius: 0.035' | PRODUCT ATTRIBUTES | Category: Machine Screws | System of Measurement: Inch | Brand: Aspen Fasteners | Form and Design: SEMS Screws Pre-Assembled with a Captive Lock Washer | Head Style: Pan Head | Head Style Detail: Free-Spinning Square Cone Lock Washer | Drive Style: Cruciform Recess Drive | Drive Detail: Phillips Type H | Thread Length: Full Thread | Thread Direction: Right-Hand Thread | Material: Steel | Coating: Zinc Plated and Baked | Coating Color: Clear | Origin: Origin Undefined | Standards and Specifications: ASME B18.13a and SAE J82 | NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.

Features & Specs

• Drive System : Phillips
• Head Type : Pan
• Screw Head Style : Pan
• Thread Size : 1/4'-20
• Thread Style : Right Hand

Item details

• ASIN : B01AWR57EE
• Brand : ASPEN FASTENERS
• Fastener Type : Cap
• Item Weight : 34.2 Pounds
• Manufacturer : Aspen Fasteners
• Model : AMSC214-1420X1-002000
• Number Of Items : 1
• Part Number : AMSC214-1420X1-002000
• UPC : 698435371705
• Unit Count : 2000.0 Count

Materials & Care

• Exterior Finish : Zinc
• Material Type : Steel
• Metal Type : Alloy Steel

Measurements

• Item Dimensions : 1 x 0.25 x 1 inches
• Item Weight : 34.2 Pounds
• Number of Pieces : 2000
• Size Name : 1/4'-20 X 1'
• Thread Coverage : Fully Threaded
• Thread Size : 1/4'-20
